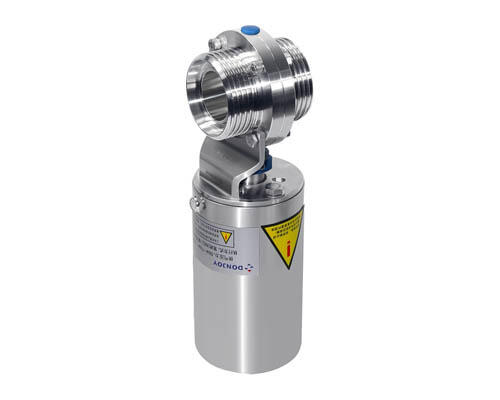

Pneumatic Actuated Butterfly Valve (Butt Weld Connection)

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection
