Valves, Filters & Fittings for Food, Dairy & Beverage Processing
Sepak Industries supplies a comprehensive range of valves, filters and fittings designed for hygienic, high-performance food and beverage processing environments. Built to meet the demands of modern production facilities, our solutions support safe, efficient flow control while maintaining strict sanitation and compliance standards.
Our range includes stainless steel sanitary valves engineered for durability, cleanability and long service life. From everyday isolation and flow regulation through to critical safety applications, each component is selected to integrate seamlessly into hygienic process lines. This includes the sanitary butterfly valve, a reliable and cost-effective option for on/off and throttling control in liquid and semi-viscous product applications.
For systems requiring pressure protection, we offer robust solutions such as the sanitary pressure relief valve and sanitary safety valve, designed to safeguard equipment, product integrity and operators by maintaining safe operating limits. These valves are essential in closed-loop and thermal processing systems where pressure control is critical.
Automation-ready options are also available, including pneumatic sanitary valves that enable precise, repeatable operation and smooth integration with PLC-controlled production systems. Combined with our hygienic filters and fittings, these components help reduce contamination risk, simplify cleaning, and support consistent production outcomes.
Whether you are building a new process line or upgrading existing equipment, Sepak Industries delivers hygienic valve and fitting solutions you can rely on for performance, safety and long-term reliability.
90 Degree Filter
EGL121
- Housing: AISI316L/AISI304
- Gasket: EPDM according to FDA 177.2600
- Inner Surface Finish: Ra < 0.8
- Outer Surface Finish: Mirror Polish
- Filters particulates that would otherwise damage/destroy pumps or other equipment
- Consists of inlet and outlet housing and screen mesh
$600.70 ea.
Control Unit + Single Seat Pneumatic Divert Valve
VHX103Q1-021
- Size: 1”-4”
- Working Temperature: -10oC-120oC (EPDM)
- SIP Temperature: 140oC (max. 30 mins)
- Max. Working Pressure: 10bar
- Compressed Air Pressure: 5-7bar
- Air Connections: G1/8” (BSP)
- Gaskets: FPM (viton (R)) in compliance with FDA177.2600
- Connections: DIN, SMS, RJT, IDF
- Surface Finish: Ra ≤ 0.5
- Double-acting pneumatic and double stop actuator
- External position sensor and valve position regulator
- Steam barrier (if shaft sterilisation required)
- Body jacket insulation
- Diaphragm type valve cavity
- C-TOP control unit, valve manually operated
$1,929.38 ea.

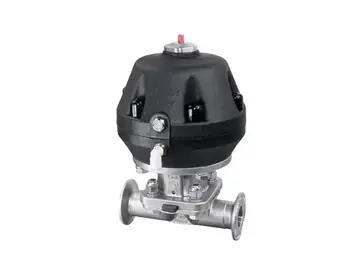

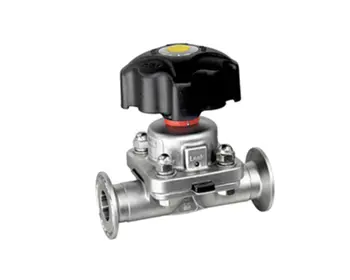

Diaphragm Valve (Pharmaceutical grade)
VGM0S1
Manual plastic hand whee and clamp ferrule. Optional stainless steel actuator or control type.
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.
- Max. Pressure: 8bar EPDM, 4.5bar PTFE
- Min. Pressure: 0.3bar
- Operating temperature: -10oC to 150oC (EPDM with SS actuator)
- Casing/Shaft: AISI 316L/304 (cast)
- Handle: AISI 304
- Spring: AISI 301
- Seal: EPDM standard with PTFE Liner as option
- Surface Finishing: Ra ≤ 0.5
- Easy to disassemble
- sizes available from 1/4" to 4"
- Optional stainless steel 304 hand wheel, Stainless steel actuator or Plastic actuator with or without control top
$264.85 ea.

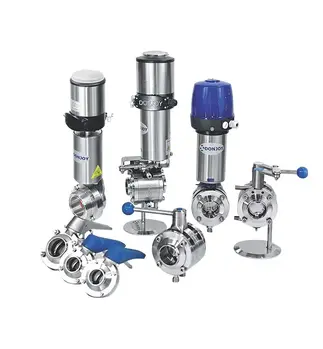

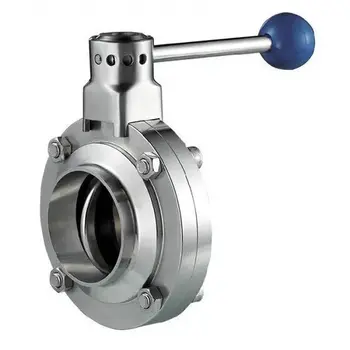

Manual Butterfly Valve (Clamp Connection)
VDF110S1
Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Handle: AISI 304 - Washer and Gasket: EPDM conforms to PFA 177.2600
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Standard Butterfly valve fitted with EPDM seal
- Silicone, NBR, Viton seals are also available upon request
- Valve body can be changeable with any kind of connection
$178.00 ea.
Manual Butterfly Valve (Threaded Connection)
VDF130S1-RJT
Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Handle: AISI 304
- Washer and Gasket: EPDM conforms to PFA 177.2600
- Surface Finish: Ra ≤ 0.8
- Compact and Robust Design
- Silicone, NBR, Viton seals are also available upon request
- Valve body can be changeable with any kind of connection
$170.00 ea.
Manual Butterfly Valve (Welded Connection)
VDF100S1
Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Handle: AISI 304
- Gasket: EPDM conforms to PFA 177.2600. Silicone, NBR, Viton seals are also available upon request
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Valve body can be changeable with any kind of connection
$150.00 ea.

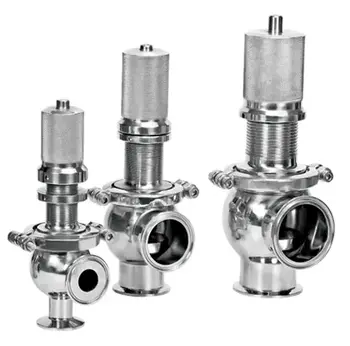

Manual Quick-Release Safety Valve
VAQ100S2
- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar
- Max Temperature: 121oC (EPDM)
- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread
- Gasket: EPDM, NBR, FPM
- Protects pipes and pumps from over pressure
- Sanitary and safe design prevents operation danger and equipment breakdown
- Best choice for use in dairy, food, beverages, pharmacy and fine chemical
$116.03 ea.

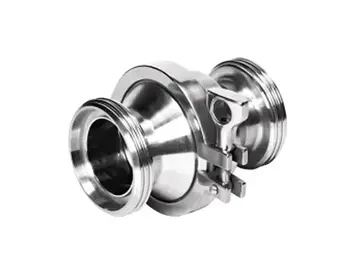

Non-Return Check Valve (Welded Connection)
VHZ130A1
Sanitary non-return check valves ensure unidirectional flow, preventing backflow and contamination in hygienic processing systems. Widely used in food, beverage, pharmaceutical, and chemical applications, they maintain product integrity while supporting clean, efficient, and reliable operation.
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.
- Max. Pressure: 10bar
- Min. Pressure: 0.3bar
- Operating temperature: -10oC to 120oC (EPDM)
- Casing/Shaft: AISI 316L/304
- Spring: AISI 301
- Seal: EPDM according to 177.2600
- Surface Finish: Ra ≤ 0.8
- Easy to disassemble
- Compact
- DIN11851 connections (standard)
$184.50 ea.
Pneumatic Actuated Butterfly Valve (Butt Weld Connection)
VDF100Q1
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.
- Washer and Gasket: EPDM conforms to PFA 177.2600
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Standard Butterfly valve fitted with EPDM seal
- Silicone, NBR, Viton seals are also available upon request
- Valve body can be changeable with any kind of connection
$2,127.40 ea.
Pneumatic Actuated Butterfly Valve (Clamp Type Ferrules)
VDF110Q1
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.
- Washer and Gasket: EPDM conforms to PFA 177.2600
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Standard Butterfly valve fitted with EPDM seal
- Silicone, NBR, Viton seals are also available upon request
- Valve body can be changeable with any kind of connection
$2,150.71 ea.
Pneumatic Actuated Butterfly Valve RJT (BSM Flat Faced Male)
VDF130Q1
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.
- Washer and Gasket: EPDM conforms to PFA 177.2600
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Standard Butterfly valve fitted with EPDM seal
- Silicone, NBR, Viton seals are also available upon request
- Valve body can be changeable with any kind of connection
$2,144.00 ea.
Pneumatic Quick-Release Safety Valve
VAQ100Q1
- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar
- Max Temperature: 121oC (EPDM)
- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread
- Gasket: EPDM, NBR, FPM
- Protects pipes and pumps from over pressure
- Sanitary and safe design prevents operation danger and equipment breakdown
- Best choice for use in dairy, food, beverages, pharmacy and fine chemical
$165.21 ea.
Round Manhole Cover
ERK211
- Height: H customisable to 100, 120, 150mm
- Material: AISI304 (1.4301)/316L (1.4404)
- Gasket: EPDM, NBR, Silicon, FPM in accordance with FDA177.2600
- Inner Surface: 0.5 ≤ Ra ≤ 0.8
- Outer Surface: Polishing, matte and sand-blasting finish
- Outward opening
- Plastic or stainless steel wheel
$892.45 ea.

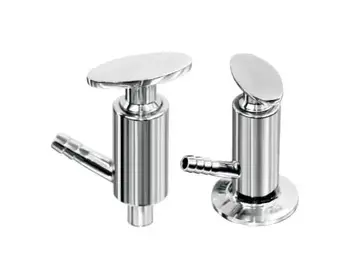

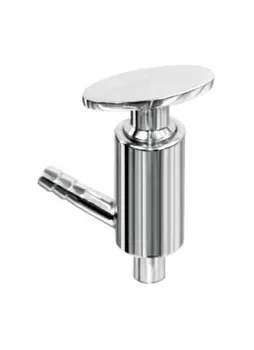

Sample Valve, Manual Handle, Butt Weld Connection.
VQY200S1
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar
- Min. Pressure: Vacuum
- Operating temperature: -10oC to 120oC
- Handle: AISI 304
- Seal: PTFE & NBR O-Ring
$77.50 ea.

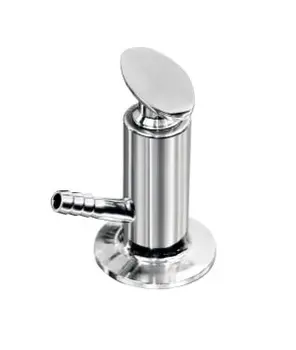

Sample Valve, Manual Handle, Clamp Ferrule Connection.
VQY210S1
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar
- Min. Pressure: Vacuum
- Operating temperature: -10oC to 120oC
- Handle: AISI 304
- Seal: PTFE & NBR O-Ring
$77.50 ea.
Single Seat Pneumatic Divert Valve
VHX100Q1-021
- Size: 1”-4”
- Working Temperature: -10oC-120oC (EPDM)
- SIP Temperature: 140oC (max. 30 mins)
- Max. Working Pressure: 10bar
- Compressed Air Pressure: 5-7bar
- Air Connections: G1/8” (BSP)
- Gaskets: FPM (viton (R)) in compliance with FDA177.2600
- Connections: DIN, SMS, RJT, IDF
- Surface Finish: Ra ≤ 0.5
- Double-acting pneumatic and double stop actuator
- External position sensor and valve position regulator
- Steam barrier (if shaft sterilisation required)
- Body jacket insulation
- Diaphragm type valve cavity
- C-TOP control unit, valve manually operated
$1,141.88 ea.
Straight Filter
EGL110
- Housing: AISI316L/AISI304
- Gasket: EPDM according to FDA 177.2600
- Inner Surface Finish: Ra < 0.8
- Outer Surface Finish: Mirror Polish
- Filters particulates that would otherwise damage/destroy pumps or other equipment
- Consists of inlet and outlet housing and screen mesh
$572.40 ea.
Tank Breather With Dust Filter From 1 Micron (Stock 10 Micron, 2 Inch Clamp Ferrule).
EHX111
Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar
- Min. Pressure: Vacuum
- Surface Finish: Ra ≤ 0.8
- Operating temperature: -10oC to 120oC
- Handle: AISI 304
- Seal: PTFE & NBR O-Ring
- CIP flush connection.
$424.90 ea.
Y Type Filter
EGL310
- Housing: AISI316L/AISI304
- Gasket: EPDM according to FDA 177.2600
- Inner Surface Finish: Ra < 0.8
- Outer Surface Finish: Mirror Polish
- Filters particulates that would otherwise damage/destroy pumps or other equipment
- 10 micron filter cartridge as standard, optional 1 micron filter available
$572.10 ea.
