SEPAK INDUSTRIES plate heat exchangers are one of the most energy efficient plate heat exchangers in the world. These heat exchangers are used for liquid to liquid or gas to liquid heat transfer applications.

The plate and frame type heat exchangers or Plate Heat Exchanger (PHEs) are expandable and easy to modify.

The PHEs can be used in the following heat transfer applications plus more:

  1. Water to water or Liquid to liquid
  2. Steam to water or product
  3. Airconditioning system condensers
  4. Refrigeration system condensers or evaporators
  5. Milk cooler
  6. Heat recovery
  7. Milk pasteurisers
  8. Juice pasteurisers
  9. Cream pasteurisers
  10. And many more applications

Our PHE Services:

  1. Design, supply and installation of new heat exchangers,
  2. Replacement gaskets
  3. Replacement plates
  4. Servicing of heat exchanger
  5. Pressure testing service
  6. Cleaning of plates



See our Plate Heat Exchangers Specs.

If you are looking for incredible value plate heat exchangers, contact us or give us a call today on 02 9618 1455.









Brazed Plate Heat Exchangers
Brazed Plate Heat Exchangers
Brazed Plate Heat Exchangers

Sepak Industries supplies brazed plate heat exchangers, offering a compact, efficient, and maintenance-free solution for heating, cooling, and condensing applications. With no gaskets required, these exchangers can operate continuously under extreme temperatures and high pressures, making them ideal for demanding industrial and process environments.

Key Features

Optimised plate corrugation and turbulence ensure up to 95% heat transfer efficiency, even at low flow rates.
High turbulence minimises fouling and reduces downtime.
Space-saving design with high thermal performance.
Stainless steel plates brazed with copper or nickel for strength and long service life.
No gaskets to replace, reducing operating costs.

Applications

Water heating and cooling systems
Refrigeration and glycol chilling
Heat recovery systems
Industrial and process heating or cooling
Protection of high-value equipment

BRAZED PLATE  HEAT EXCHANGER BROCHURE

0.00
More Info

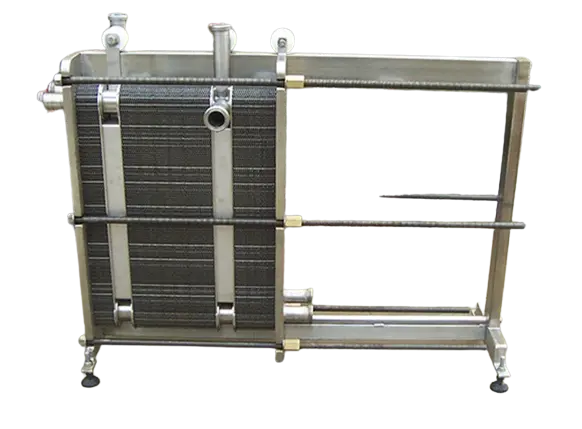

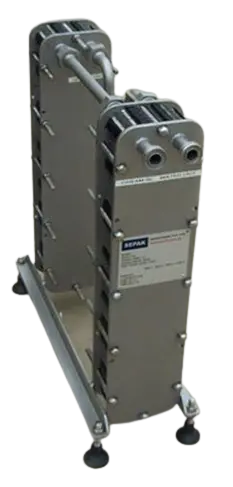

Plate Heat Exchangers
Plate Heat Exchangers
Plate Heat Exchangers

Sepak Industries supplies plate and frame heat exchangers that are among the most efficient and economical on the market, achieving up to 95% efficiency with a compact, space-saving design. Standard flow plates are manufactured from stainless steel, with options available in titanium and other exotic materials for demanding applications.

We offer complete design, supply, and installation of heat exchangers and heat exchange systems for a wide range of industries, including:

Water-to-water heating or cooling
Heat recovery pasteurisers for milk, wine, and juices
Chilling of fluids (e.g. glycol)
Protection of high-value heating and cooling equipment
Pressure breaker (buffer) applications

Gasketed Plate Design

Sepak’s extensive range of plate heat exchangers provides the optimal solution for any duty, with connection sizes from Ø15 – Ø500 mm and flow capacities from 50 L/hour up to 2000 m³/hour.

The innovative inlet design ensures perfect distribution of liquids across the heating surface, while increased inlet area and precision grooves eliminate “dead spots” where bacteria could otherwise form. This design guarantees hygienic performance, strong construction, and long service life with minimal maintenance.

PLATE AND FRAME HEAT EXCHANGER BROCHURE


0.00
More Info
