Food & Pharmaceutical Grade Valves for Hygienic Processing

- Size: 1”-4”

- Working Temperature: -10oC-120oC (EPDM)

- SIP Temperature: 140oC (max. 30 mins)

- Max. Working Pressure: 10bar

- Compressed Air Pressure: 5-7bar

- Air Connections: G1/8” (BSP)

- Gaskets: FPM (viton (R)) in compliance with FDA177.2600

- Connections: DIN, SMS, RJT, IDF

- Surface Finish: Ra ≤ 0.5

- Double-acting pneumatic and double stop actuator

- External position sensor and valve position regulator

- Steam barrier (if shaft sterilisation required)

- Body jacket insulation

- Diaphragm type valve cavity

- C-TOP control unit, valve manually operated

Manual plastic hand whee and clamp ferrule. Optional stainless steel actuator or control type.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 8bar EPDM, 4.5bar PTFE

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 150oC (EPDM with SS actuator)

- Casing/Shaft: AISI 316L/304 (cast)

- Handle: AISI 304

- Spring: AISI 301

- Seal: EPDM standard with PTFE Liner as option

- Surface Finishing: Ra ≤ 0.5

- Easy to disassemble

- sizes available from 1/4" to 4"

- Optional stainless steel 304 hand wheel, Stainless steel actuator or Plastic actuator with or without control top

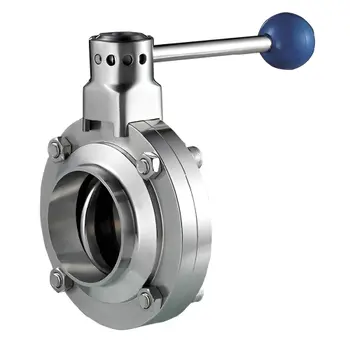

Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Handle: AISI 304 - Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

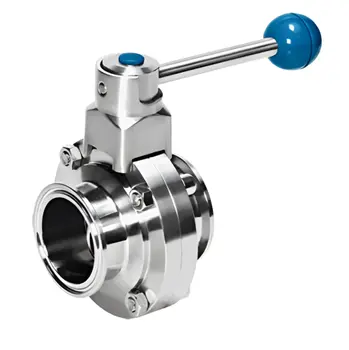

Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Handle: AISI 304

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finish: Ra ≤ 0.8

- Compact and Robust Design

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

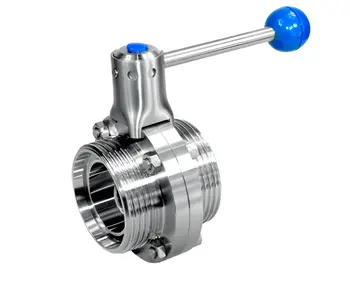

Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.

Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Handle: AISI 304
- Gasket: EPDM conforms to PFA 177.2600. Silicone, NBR, Viton seals are also available upon request
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Valve body can be changeable with any kind of connection

- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar

- Max Temperature: 121oC (EPDM)

- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread

- Gasket: EPDM, NBR, FPM

- Protects pipes and pumps from over pressure

- Sanitary and safe design prevents operation danger and equipment breakdown

- Best choice for use in dairy, food, beverages, pharmacy and fine chemical

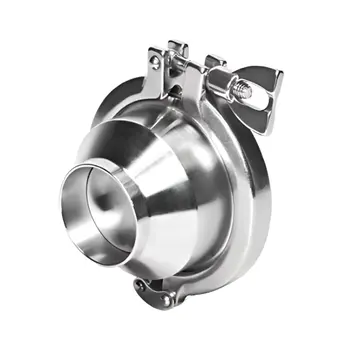

Sanitary non-return check valves ensure unidirectional flow, preventing backflow and contamination in hygienic processing systems. Widely used in food, beverage, pharmaceutical, and chemical applications, they maintain product integrity while supporting clean, efficient, and reliable operation.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 10bar

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 120oC (EPDM)

- Casing/Shaft: AISI 316L/304

- Spring: AISI 301

- Seal: EPDM according to 177.2600

- Surface Finish: Ra ≤ 0.8

- Easy to disassemble

- Compact

- DIN11851 connections (standard)

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar

- Max Temperature: 121oC (EPDM)

- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread

- Gasket: EPDM, NBR, FPM

- Protects pipes and pumps from over pressure

- Sanitary and safe design prevents operation danger and equipment breakdown

- Best choice for use in dairy, food, beverages, pharmacy and fine chemical

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

- Size: 1”-4”

- Working Temperature: -10oC-120oC (EPDM)

- SIP Temperature: 140oC (max. 30 mins)

- Max. Working Pressure: 10bar

- Compressed Air Pressure: 5-7bar

- Air Connections: G1/8” (BSP)

- Gaskets: FPM (viton (R)) in compliance with FDA177.2600

- Connections: DIN, SMS, RJT, IDF

- Surface Finish: Ra ≤ 0.5

- Double-acting pneumatic and double stop actuator

- External position sensor and valve position regulator

- Steam barrier (if shaft sterilisation required)

- Body jacket insulation

- Diaphragm type valve cavity

- C-TOP control unit, valve manually operated

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Surface Finish: Ra ≤ 0.8

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

- CIP flush connection.
