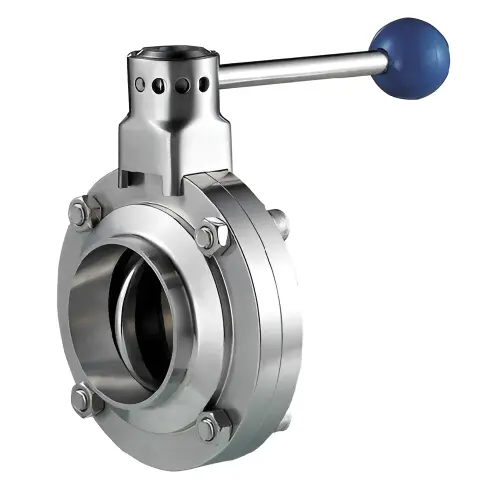

Manual Butterfly Valve (Welded Connection)

Sanitary butterfly valves provide reliable manual flow control for food, beverage, pharmaceutical, chemical, and industrial fluid applications. Designed for hygienic processing, they ensure safe and efficient operation across a wide range of systems.

Technical Specifications
- Product contact parts SS316L with EPDM seals as standard.
- Max. Pressure: 10bar ½” – 8”
- Min. Pressure: 0.2bar
- Operating temperature: -10oC to 120oC (EPDM)
- Disc and Valve Body: AISI 316L/304 (forged)
- Handle: AISI 304
- Gasket: EPDM conforms to PFA 177.2600. Silicone, NBR, Viton seals are also available upon request
- Surface Finishing: Ra ≤ 0.8
- Compact and Robust Design
- Valve body can be changeable with any kind of connection
