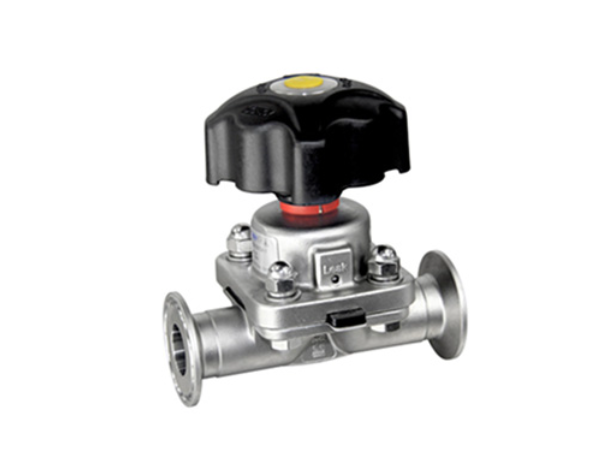

Diaphragm Valve (Pharmaceutical grade)

Manual plastic hand whee and clamp ferrule. Optional stainless steel actuator or control type.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 8bar EPDM, 4.5bar PTFE

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 150oC (EPDM with SS actuator)

- Casing/Shaft: AISI 316L/304 (cast)

- Handle: AISI 304

- Spring: AISI 301

- Seal: EPDM standard with PTFE Liner as option

- Surface Finishing: Ra ≤ 0.5

- Easy to disassemble

- sizes available from 1/4" to 4"

- Optional stainless steel 304 hand wheel, Stainless steel actuator or Plastic actuator with or without control top
