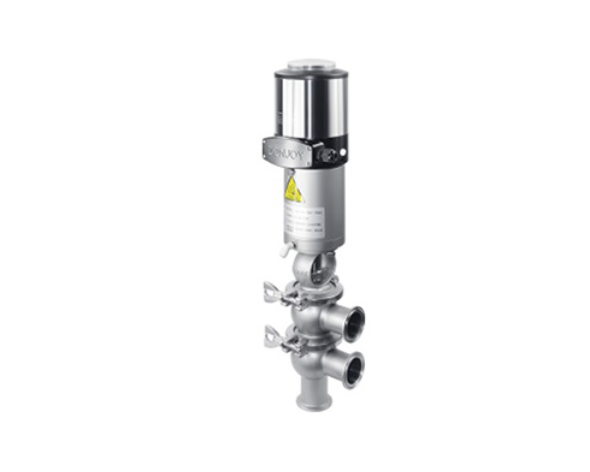

Control Unit + Single Seat Pneumatic Divert Valve

- Size: 1”-4”

- Working Temperature: -10oC-120oC (EPDM)

- SIP Temperature: 140oC (max. 30 mins)

- Max. Working Pressure: 10bar

- Compressed Air Pressure: 5-7bar

- Air Connections: G1/8” (BSP)

- Gaskets: FPM (viton (R)) in compliance with FDA177.2600

- Connections: DIN, SMS, RJT, IDF

- Surface Finish: Ra ≤ 0.5

- Double-acting pneumatic and double stop actuator

- External position sensor and valve position regulator

- Steam barrier (if shaft sterilisation required)

- Body jacket insulation

- Diaphragm type valve cavity

- C-TOP control unit, valve manually operated
