Sepak Industries is a solution provider for mixing problems with a range of high quality mixing systems to suit every occasion from milk powder to water mixing to guar gum mixing or sugar dissolving in cold water. Sepak Industries Pty Ltd design and manufacture 2 main groups of mixing systems namely

1. In line mixing system
2. In tank mixing systems.

Please see our brochure for more details or contact our sales team at sales@sepak.com.au for all your enquiries.

DOWNLOAD BROCHURE HERE

See our system here!

Sepak Industries Design and manufacture counter-rotating mixers for mixing of viscous, non-Newtonian fluids in tanks and process vessels. Products such as conditioners, shampoo, and tomato sauce can now be easily mixed, improving heating and process times. The mixers can be adapted to suit existing vessels or Sepak Industries can design and manufacture complete with purpose-built process vessels. The mixers are manufactured with an anchor-type outer stirrer and aerofoil-type inner stirrers. The outer stirrer has Nylon scraper blades for scraping the vessel wall to prevent burn on in heated vessels, and to increase turbulence and heat transfer near vessel walls.

Mixing speed, mixer type, and blade profiles can be selected to suit specific applications or products with many types available. The bulk of the liquid is pumped down before being re-circulated up past the scraped heated tank walls. The mixer pictured below was fitted to an existing 7500-liter steam jacketed, vacuum vessel. Hard-faced mechanical shaft seals were adapted to allow the mixer and vessel to hold a vacuum during the mixing process. A split mechanical seal was used on the outer shaft to minimize disassembly and downtime for seal face replacement. Our design also avoids any bolted shaft couplings within the vessel and all wetted parts are manufactured from 316 stainless steel. Our scraper design allows scrapers to be changed in minutes without the use of tools.

For more information regarding your mixing needs please call the staff at Sepak Industries Pty Ltd.

SEPAK Industries designs, manufactures and installs highest quality stainless steel milk, cheese and yoghurt vats tanks for the food, beverage and pharmaceutical industries. Our dairy vats can be custom-designed with dimple plate cavity jackets for faster heating of contents with steam or hot water or for faster cooling with glycol or refrigerant.

Tanks from 50L to 50ML may have conical or flat sloped bottoms, horizontal or vertical, with options such as outlet valves, spray balls or top or side entry.

Sepak Industries has been manufacturing Stainless steel vessels since 1989, through years of experience and Research & Development we have developed a number of Mixing Systems to suit various applications such as:

• Impeller style, Anchor style, Ribbon style Agitators.
• Counter Rotating mixers for difficult to mix products.
• In tank Batch Emulsifier for Powder Mixing and Homogenising.

Please see our brochure for more details or contact our sales team at sales@sepak.com.au for all your enquiries.

DOWNLOAD BROCHURE HERE

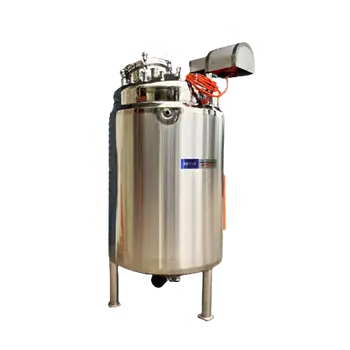

SEPAK Industries designs and manufacture stainless steel pressure vessel in Australia according to AS1210 to provide appropriate economy, performance, reliability and maintainability.

We manufacture pressure vessels based on uniform and safety requirements. We cover the material, design, testing, inspection, certification, and despatch of pressure vessels. We can do purged with Argon TIG according to Australian Standards. Our experienced engineers can design pressure vessels that meet purchaser’s requirements, and we offer the service of design approval and stamp for our client from WORKSAFE NSW.

We ensure certain protection of all persons involved in various stages of the vessel’s life and of adjacent property and environment.

Sepak Industries designs Stainless steel tanks from 50L to 50ML and may have conical or flat sloped bottoms, with options such as tank outlet valves, spray balls or top or side entry. Along with our stainless steel tanks, Sepak Industries can also design and manufacture stainless steel pressure vessels.

Our stainless steel tanks and pressure vessels are manufactured with stainless steel, 316 welted parts and are hygienically designed with knuckle radius and polished internal surfaces.
