Food Grade Valves & Pharmaceutical Grade Valves

Aseptic Sample Valve, Manual Handle, Clamp Ferrule Connection.
Aseptic Sample Valve, Manual Handle, Clamp Ferrule Connection.
VQY100S1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

- CIP flush connection.

$968.00 ea.
More Info
Control Unit + Single Seat Pneumatic Divert Valve
Control Unit + Single Seat Pneumatic Divert Valve
VHX103Q1-021

- Size: 1”-4”

- Working Temperature: -10oC-120oC (EPDM)

- SIP Temperature: 140oC (max. 30 mins)

- Max. Working Pressure: 10bar

- Compressed Air Pressure: 5-7bar

- Air Connections: G1/8” (BSP)

- Gaskets: FPM (viton (R)) in compliance with FDA177.2600

- Connections: DIN, SMS, RJT, IDF

- Surface Finish: Ra ≤ 0.5

- Double-acting pneumatic and double stop actuator

- External position sensor and valve position regulator

- Steam barrier (if shaft sterilisation required)

- Body jacket insulation

- Diaphragm type valve cavity

- C-TOP control unit, valve manually operated

$1,929.38 ea.
More Info

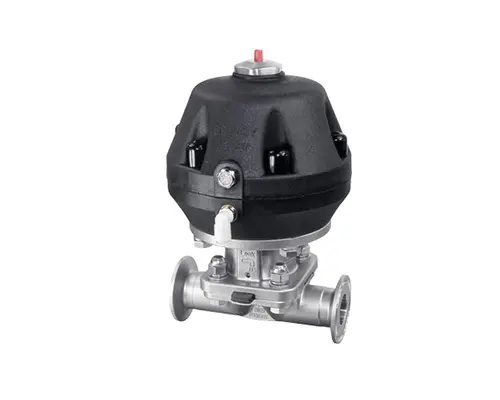

Diaphragm Valve (Pharmaceutical grade)
Diaphragm Valve (Pharmaceutical grade)
VGM0S1

Manual plastic hand whee and clamp ferrule. Optional stainless steel actuator or control type.

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 8bar EPDM, 4.5bar PTFE

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 150oC (EPDM with SS actuator)

- Casing/Shaft: AISI 316L/304 (cast)

- Handle: AISI 304

- Spring: AISI 301

- Seal: EPDM standard with PTFE Liner as option

- Surface Finishing: Ra ≤ 0.5

- Easy to disassemble

- sizes available from 1/4" to 4"

- Optional stainless steel 304 hand wheel, Stainless steel actuator or Plastic actuator with or without control top



$259.70 ea.
More Info
Manual (SS304 Pull Out Handle) Butterfly Valve (Butt Welded)
Manual (SS304 Pull Out Handle) Butterfly Valve (Butt Welded)
VDF100S1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Handle: AISI 304

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$118.40 ea.
More Info
Manual (SS304 Pull Out Handle) Butterfly Valve (Clamp Type Ferrules)
Manual (SS304 Pull Out Handle) Butterfly Valve (Clamp Type Ferrules)
VDF110S1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Handle: AISI 304 - Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$141.75 ea.
More Info
Manual (SS304 Pull Out Handle) Butterfly Valve BSM/RJT Flat Face Male
Manual (SS304 Pull Out Handle) Butterfly Valve BSM/RJT Flat Face Male
VDF130S1-RJT

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Handle: AISI 304

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finish: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$147.00 ea.
More Info
Manual Quick-Release Safety Valve
Manual Quick-Release Safety Valve
VAQ100S2

- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar

- Max Temperature: 121oC (EPDM)

- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread

- Gasket: EPDM, NBR, FPM

- Protects pipes and pumps from over pressure

- Sanitary and safe design prevents operation danger and equipment breakdown

- Best choice for use in dairy, food, beverages, pharmacy and fine chemical

$116.03 ea.
More Info
Pneumatic Actuated Butterfly Valve (Butt Weld Connection)
Pneumatic Actuated Butterfly Valve (Butt Weld Connection)
VDF100Q1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$2,127.40 ea.
More Info
Pneumatic Actuated Butterfly Valve (Clamp Type Ferrules)
Pneumatic Actuated Butterfly Valve (Clamp Type Ferrules)
VDF110Q1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$2,150.75 ea.
More Info
Pneumatic Actuated Butterfly Valve RJT (BSM Flat Faced Male)
Pneumatic Actuated Butterfly Valve RJT (BSM Flat Faced Male)
VDF130Q1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar ½” – 8”

- Min. Pressure: 0.2bar

- Operating temperature: -10oC to 120oC (EPDM)

- Disc and Valve Body: AISI 316L/304 (forged)

- Actuator: AISI 304 Spring Return Vertical type. Optional double acting actuator available.

- Washer and Gasket: EPDM conforms to PFA 177.2600

- Surface Finishing: Ra ≤ 0.8

- Compact and Robust Design

- Standard Butterfly valve fitted with EPDM seal

- Silicone, NBR, Viton seals are also available upon request

- Valve body can be changeable with any kind of connection

$2,144.00 ea.
More Info
Pneumatic Quick-Release Safety Valve
Pneumatic Quick-Release Safety Valve
VAQ100Q1

- Max. Operating Pressure (Spring Adjustable): 0-3bar / 0-6bar / 0-10 bar

- Max Temperature: 121oC (EPDM)

- Connections: DIN, IDF, RJT, 3A, SMS, Clamp, Flange, Weld, Thread

- Gasket: EPDM, NBR, FPM

- Protects pipes and pumps from over pressure

- Sanitary and safe design prevents operation danger and equipment breakdown

- Best choice for use in dairy, food, beverages, pharmacy and fine chemical

$165.21 ea.
More Info
Sample Valve, Manual Handle, Butt Weld Connection.
Sample Valve, Manual Handle, Butt Weld Connection.
VQY200S1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

$103.35 ea.
More Info
Sample Valve, Manual Handle, Clamp Ferrule Connection.
Sample Valve, Manual Handle, Clamp Ferrule Connection.
VQY210S1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

$155.00 ea.
More Info
Single Seat Pneumatic Divert Valve
Single Seat Pneumatic Divert Valve
VHX100Q1-021

- Size: 1”-4”

- Working Temperature: -10oC-120oC (EPDM)

- SIP Temperature: 140oC (max. 30 mins)

- Max. Working Pressure: 10bar

- Compressed Air Pressure: 5-7bar

- Air Connections: G1/8” (BSP)

- Gaskets: FPM (viton (R)) in compliance with FDA177.2600

- Connections: DIN, SMS, RJT, IDF

- Surface Finish: Ra ≤ 0.5

- Double-acting pneumatic and double stop actuator

- External position sensor and valve position regulator

- Steam barrier (if shaft sterilisation required)

- Body jacket insulation

- Diaphragm type valve cavity

- C-TOP control unit, valve manually operated

$1,141.88 ea.
More Info
Spring Loaded Check Valve With Clamped Body, BSM/RJT Flat Face Connection.
Spring Loaded Check Valve With Clamped Body, BSM/RJT Flat Face Connection.
VZH100A1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 10bar

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 120oC (EPDM)

- Casing/Shaft: AISI 316L/304 (forged)

- Handle: AISI 304

- Spring: AISI 301

- Seal: EPDM according to 177.2600

- Surface Finishing: Ra ≤ 0.8

- Easy to disassemble

- Small size construction

- DIN11851 connections (standard)

$184.80 ea.
More Info
Spring Loaded Check Valve with Clamped Body, Butt Weld Connection.
Spring Loaded Check Valve with Clamped Body, Butt Weld Connection.
VHZ130A1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 10bar

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 120oC (EPDM)

- Casing/Shaft: AISI 316L/304

- Spring: AISI 301

- Seal: EPDM according to 177.2600

- Surface Finish: Ra ≤ 0.8

- Easy to disassemble

- Compact

- DIN11851 connections (standard)

$154.00 ea.
More Info
Spring Loaded Check Valve with Clamped Body, Clamp Ferrule Connection.
Spring Loaded Check Valve with Clamped Body, Clamp Ferrule Connection.
VZH110A1

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard. Optional Viton and NBR seals available.

- Max. Pressure: 10bar

- Min. Pressure: 0.3bar

- Operating temperature: -10oC to 120oC (EPDM)

- Casing/Shaft: AISI 316L/304 (forged)

- Handle: AISI 304

- Spring: AISI 301

- Seal: EPDM according to 177.2600

- Surface Finishing: Ra ≤ 0.8

- Easy to disassemble

- Small size construction

- DIN11851 connections (standard)

$184.80 ea.
More Info
Tank Breather With Dust Filter From 1 Micron (Stock 10 Micron, 2 Inch Clamp Ferrule).
Tank Breather With Dust Filter From 1 Micron (Stock 10 Micron, 2 Inch Clamp Ferrule).
EHX111

Technical Specifications

- Product contact parts SS316L with EPDM seals as standard.

- Max. Pressure: 10bar

- Min. Pressure: Vacuum

- Surface Finish: Ra ≤ 0.8

- Operating temperature: -10oC to 120oC

- Handle: AISI 304

- Seal: PTFE & NBR O-Ring

- CIP flush connection.

$531.20 ea.
More Info
